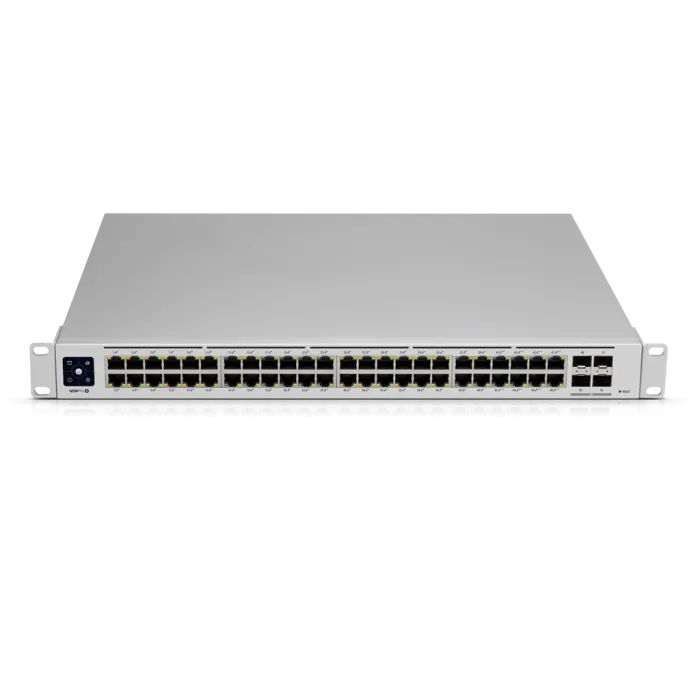

48-portno stikalo s (40) 802.3at PoE+ porti, (8) 802.3bt PoE++ porti in (4) 10 GB SFP+ porti.
Specifikacije:
(8) Gigabit RJ45 802.3bt PoE++ vrata
(40) Gigabit RJ45 802.3at PoE+ vrata
(4) 10G SFP+ vrata
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" zaslon na dotik
Managed by UniFi Network Controller

Dimenzije: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
Teža: 6.25 kg
Teža z okvirjem za Rack montažo: 6.34 kg

Spletna stran zdelka: KLIK

Mechanical


Dimensions
442.4 x 399.6 x 43.7 mm

(17.42 x 15.73 x 1.72")

Weight
6.25 kg (13.78 lb)

With Rackmount Brackets
6.34 kg (13.98 lb)

Interfaces
(48) 10/100/1000 RJ45 Ports

Networking
(4) 1/10G SFP+ Ethernet Ports




Management
Ethernet In-Band

Power Method


Universal Input
100-240VAC/50-60 Hz

USP RPS DC Input
52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply
AC/DC, Internal, 660W

Supported Voltage Range
100 to 240VAC

Max. Power Consumption (Excluding PoE Output)
60W

LEDs


System
Status

RJ45 Data Ports
PoE; Speed/Link/Activity

SFP Data Ports
Link/Activity

ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration
ETSI300-019-1.4 Standard

Operating Temperature
-5 to 40° C (23 to 104° F)

Operating Humidity
10 to 90% Noncondensing

Certifications
CE, FCC, IC

Sound Level*


25% PoE Load, 25° C Room Temperature
0.9 dBr

50% PoE Load, 25° C Room Temperature
7.3 dBr

100% PoE Load, 40° C
22.5 dBr

PoE


PoE Interfaces


Ports 1-40
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)

Ports 41-48
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. PoE Wattage per Port by PSE


802.3at
32W

802.3bt
64W

Voltage Range 802.3af Mode
44-57V

Voltage Range 802.3at Mode
50-57V

Uradna stran proizvajalca: https://store.ui.com/collections/unifi-network-routing-switching/products/usw-pro-48-poe
